Helmets

RBR Helmet, Model S4, 2nd Gen

Period 1990s. RBR helmets are favored by special forces teams in the 1990s. The RBR S4 Helmet offers a lightweight, NIJ level IIIA, compact, and sleek design, ensuring no sacrifices to ballistic protection. This Combat Helmet has been used by military, police, and tactical units globally. Its shape enhances peripheral visibility and neck movement for the wearer. RBR Ballistic Helmets have been evaluated at H.P. White Laboratory for Level IIIA standards. They are tested against the penetration and back face deformation of Level IIIA 9mm and .44 Magnum ammunition, adhering to the HP White Helmet Test Procedure (HPW-TP-0401.01B). Furthermore, this testing mandates that one of each specified rounds must strike directly on a suspension system fastener, resulting in zero penetration, establishing the RBR Helmet as superior to any other ballistic helmet available at that time.

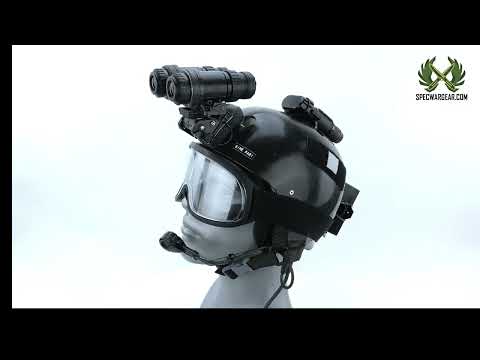

This specific setup is modeled after the helmet used by Delta Force operators in the 1990s.

RBR S4 helmet (2nd Gen), HGU NVG mount, Battery pack, SDU-5E strobe, TEA TASC I Headset (old generation), military goggles, and Surefire flashlight with IR cover.

Ops-Core Fast Base Jump Helmet with SARA

Period 2000s. Ops-Core Base Jump helmet is the same design as the Ballistic and Carbon FAST helmets but with a polycarbonate shell and a front NVG mount. Great for training, search and rescue, climbing, and other outdoor activities. It offers all the benefits and features of FAST helmets at a lower cost in comparison to other recreational sport helmets.Lightweight, multi-impact, ventilated liner with repositionable EPP impact pads, and LDV closed-cell comfort foam that is not affected by temperature, altitude, or moisture

Pictures feature the “Sordin Arc Rail Adapters (SARA)” from Iron Forged Concepts. The SARA provides secure attachment of headband or neckband models of Sordin headsets to the Peltor Arc rail adapters. It eliminates the discomfort of using a headset underneath your helmet.

The EXFIL® LTP (Lightweight, Tactical, Polymer) bump helmet

Period 2010s. The EXFIL® LTP (Lightweight, Tactical, Polymer) bump helmet is a good economical alternative to the Carbon Fiber Team Wendy bump helmet. It comes with side mounting rails, built-in NVG shroud, and rear bungee retention to secure goggle strap or NVG battery pack.

The EXFIL® LTP bump helmet offers a stable, comfortable platform for mounting night vision and other accessories while providing the highest level of impact protection. The built-in NVG shroud utilizes an integrated Wilcox® machined aluminum shroud insert. The helmet features a Zorbium® foam liner along with a CAM FIT™ retention system that uses easily adjustable cam-lock sliders and a micro-adjustable Boa® dial.

Pro-Tec Classic Full Cut Helmet

Pro-Tec skate helmet, developed in 1970s. Widely adopted by military as a bump helmet. Commonly seen in HALO, CQB, VBSS, maritime / urban terrain operations. Made of plastic, holds features such as two stage premium liner, ear protection, stainless steel hardware, and tubular webbing. Various models: half-cut style, different liner.

Pictures feature an authentic Pro-Tec helmet used by a Navy SEAL operator.

Pro-Tec Classic Half Cut Helmet

Pictures feature a Pro-Tec helmet used by a US Army Special Force operator.

Integrated Ballistic Helmet (IBH) + M45 gas mask

Ballistic helmet designed and built by ILC Dover in 1995 to 1996. Only 741 Unit were produced, mainly for USSOCOM and FBI use. Designed with weight reduction and integration of specific communication system called AHS (Ambient Hearing System). System granted the user hearing protection with increased communication ability with prewired boom mics, radio connections for both PRC and Motorola use, dual radio ability as well as environmental monitoring through ambient noise detection. IBH was also designed to interface with wide variety of oxygen mask systems for HALO and airborne operations such as the PHAOS, MBU as well as gas masks. Originally provided with ANVIS-6 NVG mount, the IBH would also use Wilcox or other NVG mounts for the PVS 7/14/15/18/21 goggles. Size adjustment is achieved through modular pad set that also provided the user comfort as well as impact protection. Used 4-point chin strap assembly.

M45 Gas Mask. Protective mask against all current known CB agents and radiological particles. Design allows for conjunctive use of NVGs, aircraft sighting systems, drinking apparatus, close fitting eyelenses and voicemitter communication devices. Can use face-mounted canisters or hose mounted filters

Crye Precision AirFrame™ Helmet + AOR1 helmet cover (cutout)

Period 2011. Sets new standards in protection, comfort, and modularity. Revolutionary overlapping shell design creates an integrated vent that provides passive cooling and reduces the damaging effects of explosive blast waves. Lighter weight and more coverage area than the ACH 2002 helmet. Compatible with common headset systems like Peltors® and Sordins®. Features an Ops-Core® H-Nape Head-Loc™ retention system for unmatched stability, comfort, and ease of adjustment. Modular ballistic ear and face protection available. Modular ARC Rail™ system available. Modular helmet foam pads available. Can be pre-drilled at factory for 3-hole or 4-hole NVG mounts (configuration compatible with Ops-Core® and Wilcox® 3-hole mounts).

US Navy SEALs PASGT Ballistic Helmet

Unknown manufacturer. Designed based on the widely adopted Personal Armor System for Ground Troops (PASGT) helmet used by the U.S. Military. A general-purpose / full-coverage ballistic helmet. Protection level exceeds standard issue U.S. Military PASGT helmets designed for fragmentation protection only. 3-point suspension system with soft rubber chin cup. Wider cut around the ears for use with various headsets / communications systems. Used by US Navy SEALs in the late 1990s and 2000s. This is not a RBR brand helmet.

Photos feature: Helmet, New Eagle International Low Profile Headset, Princeton Tec Solo head lamp, and SCOTT protective goggles. This setup corresponds to the above circa 2008 photo of US Navy SEALs from Team 2, Echo Platoon.

Filed pictures sourced from Goggle images.

CGF Gallet SPECTRA SHIELD Combat Helmet (High Cut Version)

Designed by CGF Gallet in France, 1997. Made of SPECTRA fibers, produced under license from Honeywell. Low profile, half head coverage ballistic helmet. High cut around the ears for use with various headsets / communications systems. 3-point suspension system with leather chin cup. Large overhead impact resistant pad with paracord suspension. Predecessor to the MICH ballistic helmet.

Photos feature: Helmet, BOLLE X500 goggles, TEA TASC Headset, Tri-desert helmet cover, AN/PVS-7 NVG mount, NVG counter weight.

Helmet set up corresponds to the above circa 2001 photos of US Army Special Forces soldiers.

Filed pictures sourced from Goggle images.

CGF Gallet SPECTRA SHIELD Combat Helmet (Full Coverage Version)

Designed by CGF Gallet in France, 1997. Made of SPECTRA fibers, produced under license from Honeywell. General purpose / full coverage ballistic helmet. Wider cut around the ears for use with various headsets / communications systems. 3-point suspension system with leather chin cup. Large overhead impact resistant pad with paracord suspension. Predecessor to the MICH ballistic helmet

RBR MACH III Helmet

The RBR MILITARY MACH SERIES ADVANCED COMBAT HELMET is based on the original Special Forces MICH Design with a focus toward reduction in size and an elevated cut around the ears. The MACH SERIES was designed for Military and Police special tactical units where compatibility with all NV and communication systems is of critical importance along with wearer comfort. Helmets provide un-matched Level IIIA protection and include the RBR 4 point suspension system secured with only four bolts to ensure maximum ballistic integrity, comfort and stability. The RBR Mach II Helmet is fitted with a fully adjustable padded head harness, attached via four (4) fastener screws. The head harness includes leather covered front padding, nylon covered rear padding and leather comfort crown pad. RBR Helmets are fully adjustable in the circumference as well as the wearing height, therefore, two sizes can be adjusted to fit all heads.

RBR MACH III Helmet set up including: Peltor ComTac Headset, Communication Earplug Protection (CEP) Kit, PO protective glass, Surefire helmet light, Norotos 3-Hole night vision shroud + Strap assembly + Norotos Titanium Advanced Tactical Mount (TATM), PVS-15 NVG.

Also pictured: Comparison between RBR MACH III and MSA 2001.

Integrated Ballistic Helmet (IBH)

Ballistic helmet designed and built by ILC Dover in 1995 to 1996. Only 741 Unit were produced, mainly for USSOCOM and FBI use. Designed with weight reduction and integration of specific communication system called AHS (Ambient Hearing System). System granted the user hearing protection with increased communication ability with prewired boom mics, radio connections for both PRC and Motorola use, dual radio ability as well as environmental monitoring through ambient noise detection. IBH was also designed to interface with wide variety of oxygen mask systems for HALO and airborne operations such as the PHAOS, MBU as well as gas masks. Originally provided with ANVIS-6 NVG mount, the IBH would also use Wilcox or other NVG mounts for the PVS 7/14/15/18/21 goggles. Size adjustment is achieved through modular pad set that also provided the user comfort as well as impact protection. Used 4-point chin strap assembly.

Field picture sourced from Goggle Images (Navy SEAL).

Ops-Core FAST Ballistic High Cut Helmet

Ops-Core FAST Ballistic High Cut Helmet set up: EPP Pads with OCC-Dial Fitband, Head-Loc 4-Point Chinstrap, Peltor Comtac II headset (dual cord) with 3M ARC rail adapter, Wilcox L4 G32 NVG mount, First Spear FAST Helmet cover, AOR1 MS2000 strobe light pouch.

Period 2000s. Ops-Core FAST Ballistic High Cut Helmet. Lightweight helmet designed for the modern warrior. Helmet shell made of a hybrid composite of carbon, unidirectional polyethylene, and woven aramid. Scalable design allows for compatibility with Ops-Core visors, mandibles, handgun face shields, and ballistic appliques. Raised ear cut allows for integration with communications headsets, compatible with in-ear communication devices for improved mission compatibility. Available with four suspension/retention options. 4 Position Accessory Rail Connectors: non-snag attachment points for quick yet secure donning or doffing of head borne accessories. Works in conjunction with locking and rotating adapters that utilize emergency break-away features for airborne operations. Upper ARC dovetail for devices like low-profile lights, video camera, visor, mandible and up-armor side covers. Corner ARC buckle receiver for gas and O2 mask strap kit attachments that eliminate the bulk and clutter of traditional bayonet style mounts. Lower ARC dovetail for devices like flip-out COMs headset, battery pack, goggle strap keeper, mandible and up-armor side covers. Over-the-center side hook attachment for devices like illuminator, strobe light and battery pack. Bungees to eliminate night vision mount / device rattle or vibration. Ops-Core Skeleton Shroud included on the helmet: compatible with front mount visors, flashlights and other visual enhancement devices.

The Wilcox L4 G32 Universal NVG Fixed Vertical Position Mount with Ops-Core Shroud for Various NVGs allows an operator to attach an AN/PVS-7A, 7C, 15, 15A, or 18 NVG to a helmet-mounted Ops-Core Three-Hole Fixed Position Shroud (provided). Custom interfaces (sold separately) allow the additional mounting of an AN/PVS-7B, 14, or F5050 NVG. Vertical Height Adjustment screws are located on the front of the mount and allow the vertical height to be set to a fixed position that is customizable to meet the lowest profile for the operator.

Pro-Tec ACE Water Helmet

1990s Pro-Tec ACE Water Helmet has been used by US SOF for its lightweight, low-profile, comfortable, superior ventilation, and excellent protective properties. The helmet is made of a high density ABS plastic polymer. It has a non-reflective surface and is covered by fifteen open vents for ventilation and drainage. The helmet shell extends at the back to provide full surround interior protection including the occipital area of the head. Dual density EVA inner liner and the fully adjustable Y-shaped chin strap offer great comfort / stability to the helmet during high speed maneuvers. The helmet meets the CE EN 1385 Water Sport Safety Standard Certification.

Pictures also feature a Racal headset, AN/VIS-6 NVG, NVG base mount and a battery pack.

Team Wendy M-216 Ski Helmet

Period 2010s. The M-216™ Ski Helmet features a hybrid shell design; ABS hard front shell provides reinforcement for mounted accessories, and an in-mold PC rear shell reduces weight. The helmet includes:

A glass-reinforced polycarbonate shroud for attaching headlamps and cameras. A customized Boa® Fit System guarantees a precise fit adjustment with single handed quick release. Removable ear cups specifically designed to be comfortable while using in-ear communication systems and includes a pocket for drop-in audio device compatibility. 14 Total Vents: Eight crown (adjustable), two front (passive open), four rear (fixed open) for maximum cooling during high exertion rescues. Eight adjustable crown vents with three positions (open, half open and closed) to accommodate both warm and cold conditions. Above-goggle vent channels draw air through the helmet to the rear exhaust ports to reduce goggle fogging. Integrated goggle strap retention.
